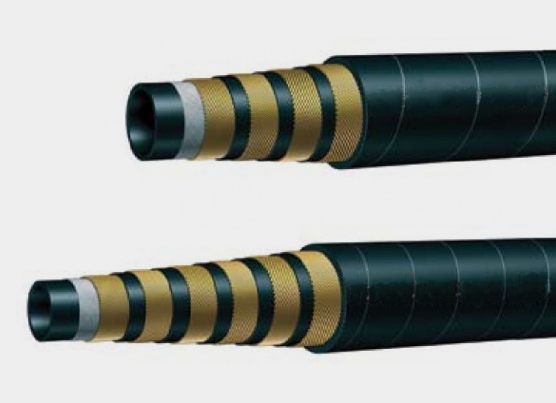

791TC/792TC
Mobil mashinalarning gidravlik jihozlari:
gidrostatik yuritmalar Umumsanoat gidravlikasi:
bosim ostida quyish dastgohlari, sinov stendlari.
| Belgilanishi | Ichki diametr | Tashqi diametr | Bosim | Min. egilish radiusi (mm) | Og’irligi (kg/m) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| maksimal ishchi | minimal yorilish | |||||||||
| mm | dyuym | dash | mm | MPa | psi | MPa | psi | |||
| R15 DN19 | 19.1 | 3/4″ | -12 | 32.0 | 42.0 | 6 000 | 168.0 | 24 000 | 265 | 1.59 |
| R15 DN25 | 25.4 | 1″ | -16 | 39.0 | 42.0 | 6 000 | 168.0 | 24 000 | 330 | 2.20 |
- Umumiy: –40 °C dan +100 °C gacha
- Havo: maks. +70 °C
- Suv: maks. +85 °C
