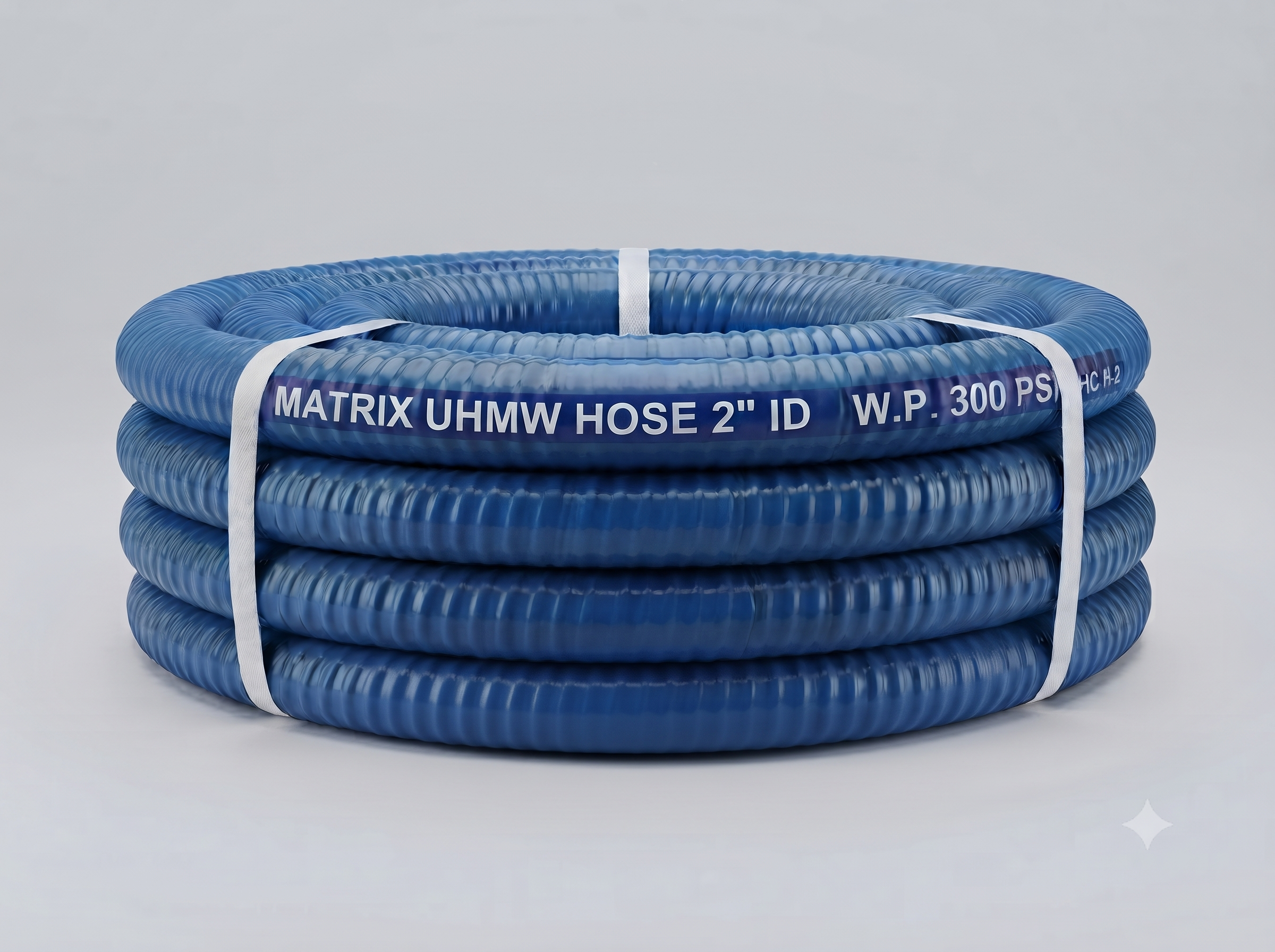

32-6 UPE SD
Official Warranty
Fast Shipping
Wholesale & Retail
Features (Special Characteristics):
-
Vacuum Resistance: 675 mmHg (26.6 inches Hg).
-
Ω/T Type: according to EN 12115 standard (R <10⁶ Ω, R <10⁹ Ω through the hose wall).
-
ATEX Suitability: (pre-classification required).
Inner Layer: Liner made of ultra-high-molecular-weight polyethylene (UHMWPE), resistant to chemicals, acids, aggressive media, and solvents.
Reinforcement: Two high-strength textile inserts, two steel wire spirals, and two antistatic copper braids.
Outer Layer: Abrasion-resistant, ozone- and weather-resistant EPDM rubber.
Application: Suitable for use as suction/discharge hose in the chemical industry.
🔍 Zoom
| Наименование | DN | Дюйм | Внутр. Ø (mm) | Рабочее давление (бар) | Внешний Ø (mm) | Pressure разрыва (бар) | Вакуум (бар) | Min. bending radius (mm) |
|---|---|---|---|---|---|---|---|---|
| 13-5 UPE SD | DN12 | 1/2" | 13 | 16 | 23 | 64 | 0.7 | 60 |
| 19-6 UPE SD | DN18 | 3/4" | 19 | 16 | 31 | 64 | 0.7 | 115 |
| 25-6 UPE SD | DN24 | 1" | 25.4 | 16 | 37 | 64 | 0.7 | 155 |
| 32-6 UPE SD | DN32 | 1.1/4" | 32 | 16 | 44 | 64 | 0.7 | 200 |
| 38-6.5 UPE SD | DN38 | 1.1/2" | 38 | 16 | 51 | 64 | 0.7 | 240 |
| 50-8 UPE SD | DN50 | 2" | 50.8 | 16 | 66 | 64 | 0.7 | 330 |
| 63-8 UPE SD | DN64 | 2.1/2" | 63.5 | 16 | 79.5 | 64 | 0.7 | 415 |
| 76-8 UPE SD | DN76 | 3" | 75 | 16 | 91 | 64 | 0.7 | 500 |
| 102-8 UPE SD | DN100 | 4" | 102 | 16 | 118 | 64 | 0.7 | 675 |
